황해 링블로워



링 블로워 (Ring Blower) 는 고압의 공기를 필요로 하는 산업현장 및 기계 등에 널리 쓰이는 기계장치로서 재생형 블로워 (Regenerative Blower) 라고도 불리며 정식 명칭은 재생형 유체기계 (Regenerative type turbo-machinery) 이다. 링 블로워는 사용하고자 하는 용도와 성능에 따라 다양한 크기와 구조로 설계 제작되고 작은 유량에서 큰 양정을 낼 수 있는 유체기계로서 임펠러의 개수 그리고 임펠러 수로의 형태에 따라 구분되며 유체를 한번 압축하는 1단 (Single) 형과 1단에서 압축된 유체를 재차 압축하여 토출하는 2단 (Double) 형으로 나뉜다.

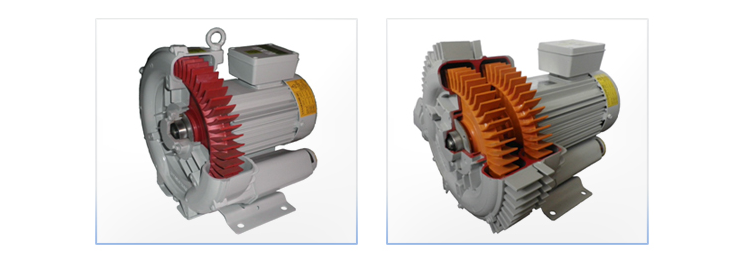

                             ​1단(single)형 링블로워                          2단(double)형 링블로워





pro_t_9.jpgpro_t_10.jpgpro_t_9.jpgpro_t_10.jpgpro_t_9.jpgpro_t_10.jpgpro_t_9.jpgpro_t_10.jpgpro_t_9.jpgpro_t_10.jpg
pro_t_11.jpg단상HRB-1010.4/0.330.5/0.43.4 / -3.8 / -10001200100010001.3 1.4
HRB-2010.85/0.631.0/0.755.2 / -6.3 / -12001200120011002.3 2.9
HRB-3011.5/1.12.0/1.511.5 / -12.5 / -18001800160016003.2 4.0
HRB-4012.5/1.833.0/2.212.0 / -19.0 / -22002800180020003.2 4.0
HRB-5012.5/1.833.0/2.216.0 / -22.0 / -21002100200020005.0 6.0
삼상HRB-1000.5/0.40.7/0.52.5/1.452.4/1.412001300100012001.3 1.4
HRB-200MPHRB-2001.0 /0.751.2/0.934.0 /2.34.2/2.413001300120012002.3 2.9
HRB-300MPHRB-3002.0 /1.52.3/1.757.0 /4.07.6/4.420002000170018003.4 4.0
HRB-400MPHRB-4003.0 /2.23.4/2.5510.4 /6.010.7/6.227003000220022003.4 4.0
HRB-500MPHRB-5003.0 /2.23.4/2.5513.0 /7.512.1/7.022002000230022005.06.0
HRB-600MPHRB-6004.0 /3.05.0/3.713.5 /7.814.0/8.128003000260028005.0 6.0
HRB-700MPHRB-7005.3 /4.06.0/4.516.6 /9.617.0/9.833003400320033005.0 6.0
HRB-750MP- / -6.0/4.5- / -17.0/9.8-2000-2000-10.0
HRB-7505.3/4.06.0/4.514.3/8.317.3/10.020002000200020008.5 10.0
HRB-800MP- / -8.4/6.3- / -21.1/12.2-3000-3100-10.0
HRB-8007.5/5.58.4/6.318.5/10.726.0/15.028003000270031008.410.0
HRB-900MP- / -11.5/8.6- / -33.0/19.0-4500-3500-10.0
HRB-90010.0/7.511.5/8.629.0/16.734.0/19.637004500300035008.410.0
HRB-1000MP- / -16.8/12.6- / -45.0/26.0-5000-3500-10.0
HRB-100015.0/11.016.8/12.640.0/23.140.0/23.144005000350035008.410.0
HRB-1110MP- / -11.5/8.6- / -28.9/16.7-2200-1800-16.0
HRB-111010.0/7.511.5/8.618.2/10.529.0/16.7130022001300180013.016.0
HRB-1100MP- / -16.8/12.6- / -38.1/22.0-2100-2000-20.0
HRB-110015.0/11.016.8/12.631.2/18.040.0/23.1170021001800200017.00 20.0
HRB-1200MP- / -20.7/15.5- / -52.0/30.0-3000-2900-20.0
HRB-120017.5/13.020.4/15.343.3/25.054.0/31.2270030002500290017.00 20.0
HRB-1300MP- / -30.0/22.7- / -69.3/40.0-4500-3800-20.0
HRB-130024.7/18.530.0/22.765.0/37.576.0/43.9430045003600380017.00 20.0
pro_t_12.jpg단상HRB-102/10.4/0.330.5/0.43.6 / -3.8 / -12001200100010001.4 1.65
HRB-202/10.85/0.631.0/0.754.4 / -5.3 / -21002100170017001.4 1.65
HRB-302/11.2/0.91.5/1.14.8 / -6.0 / -21002500200020001.41.65
HRB-402S/11.5/1.12.0/1.511.8 / -12.5 / -25002500230024002.5 3.2
HRB-402/12.5/1.833.0/2.212.8 / -15.5 / -35003500250026002.5 3.2
삼상HRB-1020.5/0.40.7/0.52.4/1.42.6/1.512001500100010001.4 1.65
HRB-202MPHRB-2021.0 /0.751.2/0.934.0 /2.34.2/2.420002500150020001.4 1.65
HRB-302MPHRB-3021.5 /1.12.0/1.54.8 /2.85.2/3.027003000200022001.4 1.65
HRB-402SMPHRB-402S2.0 /1.52.3/1.757.6 /4.58.3/4.825002800240028002.5 3.2
HRB-402MPHRB-4023.0 /2.23.4/2.559.5 /5.610.9/6.335004000260030002.5 3.2
HRB-502MPHRB-5023.0 /2.23.4/2.5510.4 /6.011.8/6.827003000220028003.4 4.1
HRB-602MPHRB-6024.0 /3.05.0/3.714.0 /8.114.7/8.538004200330040003.4 4.1
HRB-702MPHRB-7025.3 /4.06.0/4.516.5 /9.516.5/9.545005000370043003.4 4.1
HRB-802MP- / -6.0/4.5- / -20.0/11.5-3700-3500-6.1
HRB-8025.3/4.06.0/4.517.0/9.817.0/9.835003700300035005.2 6.1
HRB-902MP- / -8.4/6.3- / -26.8/15.5-5200-4300-6.1
HRB-9027.5/5.58.4/6.322.0/12.722.0/12.750005200400043005.2 6.1
HRB-1002MP- / -11.5/8.6- / -34.7/20.0-6000-4500-6.1
HRB-100210.0/7.511.5/8.631.21/18.031.2/18.055006000430045005.2 6.1
HRB-1102MP- / -16.8/12.6- / -45.0/26.0-6200-4300-9.5
HRB-110215.0/11.016.8/12.640.0/23.150.2/29.055006200400043008.09.5
HRB-1202MP- / -23.0/17.3- / -50.2/29.0-7200-4800-9.5
HRB-120220.0/15.023.0/17.340.7/23.556.0/32.365007200450048008.09.5
HRB-1112MP- / -16.8/12.6- / -45.2/26.1-2500-2300-18.0
HRB-111215.0/11.016.8/12.643.3/25.045.2/26.1250025002000230014.018.0
HRB-1212MP- / -23.0/17.3- / -57.2/33.0-3800-3000-18.0
HRB-121220.0/15.023.0/17.352.5/30.858.4/33.7300038002300300014.018.0
HRB-1302MP- / -20.7/15.5- / -49.4/28.5-2500-2700-22.0
HRB-130217.5/13.020.4/15.354.0/31.254.0/31.2220025002500270017.522.0
HRB-1402MP- / -24.7/18.5- / -59.8/34.5-3500-3200-22.0
HRB-140220.7/15.524.7/18.565.5/37.565.5/37.5300035003000320017.522.0
HRB-1502MP- / -34.4/25.8- / -80.0/46.0-4800-4800-22.0
HRB-150229.3/22.035.7/26.876.0/43.982.0/47.3480048004500480017.522.0
HRB-1602MP- / -40.0/30.0-88.2/51.0-5500-5000-22.0
HRB-160233.0/25.040.0/30.086.0/51.686.6/50.0550055005000500017.522.0
HRB-1503MP- / -24.7/18.5- / -65.8/38.0-1200-1100-40.0
HRB-150320.7/15.524.7/18.550.0/28.865.5/37.8130012001500110033.040.0
HRB-1603MP- / -30.0/22.7- / -74.5/43.0-1800-1800-40.0
HRB-160324.7/18.530.0/22.765.0/37.574.3/42.9200018002400180033.0 40.0
HRB-1703MP- / -40.0/30.0- / -91.6/52.9-2300-2500-40.0
HRB-170333.5/25.040.0/30.075.0/43.391.8/53.0260023002800250033.0 40.0
HSB-30152- / -20.0/15.5- / -52.0/30.0-3000-3000-20.0
